Welcome to SPAZIO Software Homepage!
To launch a satellite in space thermal analysis are necessary.
This software allows the calculation of the view factors, radiative
transfer coefficients, solar and planetary flows, and temperature.
in Download section
We also sell the source code. If
interested send us an email support@softwarespazio.com.
It does not require installation, just
run the exe file. To remove the software just delete the exe file.
At first run some system information
will be sent to site to avoid multiple free trial licenses.
Read the Eula Eula before downloading. The Eula is also contained in
the software.
ADVANTAGES
1.
It manages both TMM and GMM in
one software.
2.
The intuitive graphic interface
proposes the sequential flow of work facilitating learning and execution.
3.
The calculation routines use the
CPU and the GPU, speeding up the calculation of machines with a good
graphics card.
4.
No need to install
the software, simply open the executable.
MAIN FEATURES
This software includes:
1.
Presence of a CAD for the
introduction of the geometry
2.
Triangles, quadrangles, ellipses, prisms,
truncated pyramids and cones
3.
Import and export models in text
format
4.
Calculation of attitude with
celestial vectors or Euler angles
5.
Tracking of stars, planets, moons,
asteroids, comets; equatorial, orbital, ecliptic celestial vectors (star
catalog and ephemeris)
6.
Calculation of the orbits consisting
of multiple orbital arcs around all planets
7.

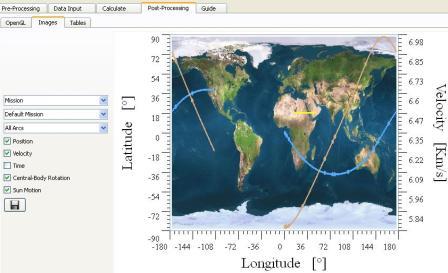

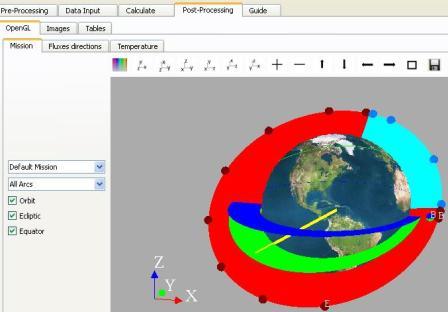

2D and 3D display of the planet and
of the orbital arcs
8.
Calculation of GR, the celestial
flows and GL
9.
Introduction of the parameters of the
TMM (thermal nodes, GR, GL, thermal controls)
10. Calculation
of temperature and extrapolation of flows over time

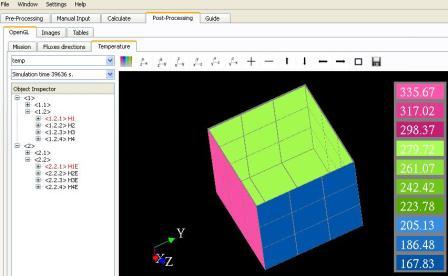

11. 3D
visualization of the Temperature results

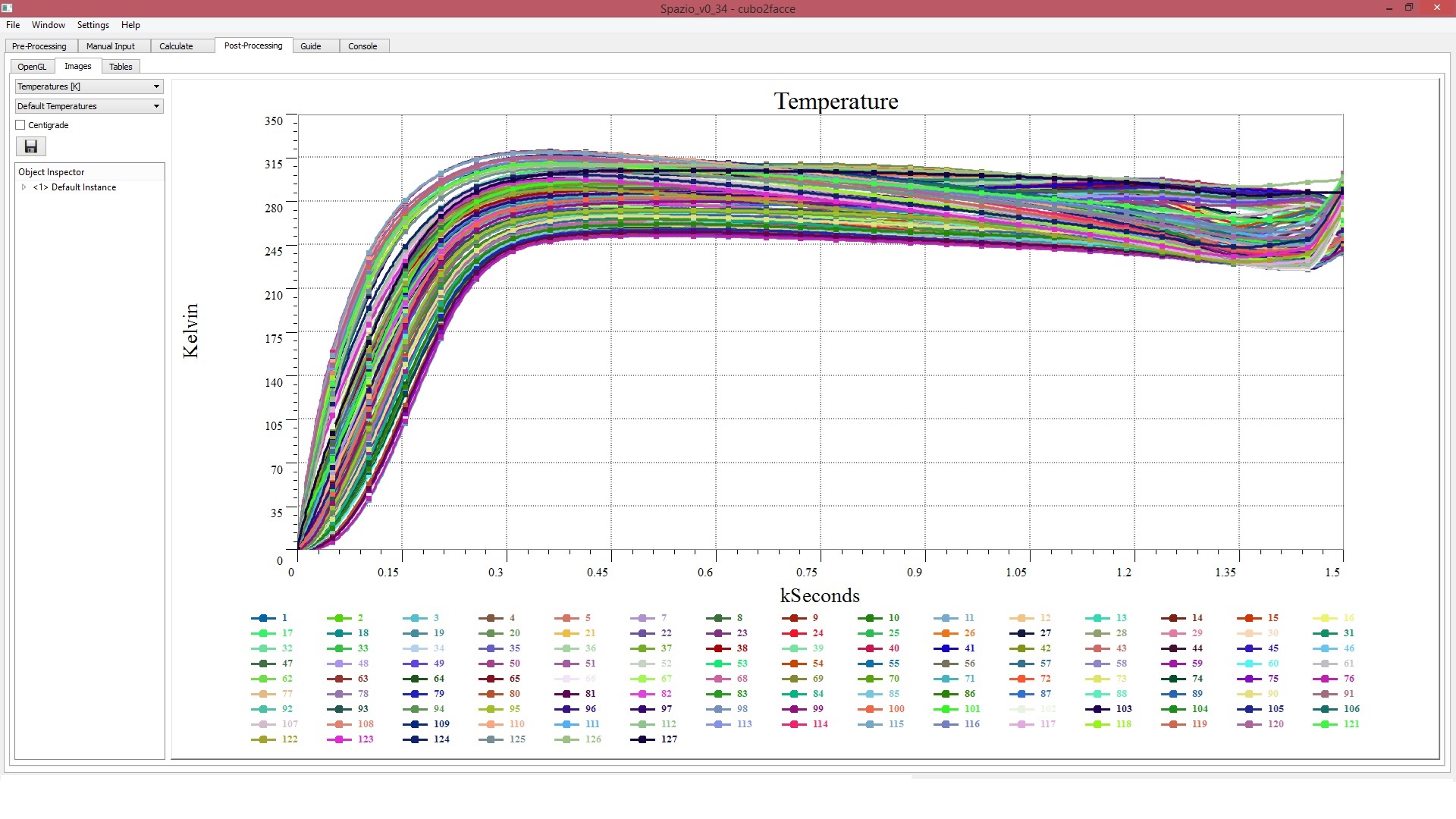

12. Tables
and figures with solar, planetary and albedo flows, internal temperatures
13. Tables
and figures can be exported in CSV format, and various image formats
14. Saving
full database (model and results compressed)
15. Re-launch
for all simulations with a click
16. Opening
multiple files in the same session
17. Help
in Italian, English, French
18. License
system secure and integrated
